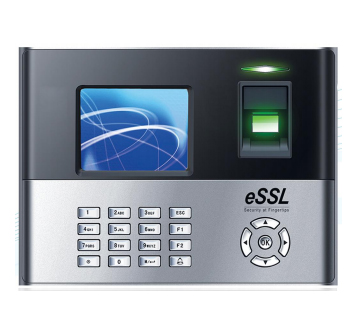

FINGERPRINT TIME & ATTENDANCE WITH ACCESS CONTROL SYSTEM
- Fingerprints Templates : 1000
- Transaction Storage : 100000
- Card Capacity : 1000
- Card Reader : Yes
- Push Data : Yes
- Fingerprint sensor : 500 DPI Optical Exit Readers : Sensor
- FAR : <=0.0001% / FRR : <=1%
- Identification Speed : <= 1sec Dual Mode : Either SSR Mode or Software Mode
- Algorithm Ver : 10
- Display : 2.8” TFT Screen
- Keypad : 4 x 4 Keypad
- LED Indicator : Green/Red
- Schedule Bell/Speaker : Mini Speaker
- Communication: TCP/IP, USB-host Standard Features: Inbuilt Battery Backup, Self Service Query, SSR Recorder, Automatic Status Switch, DST
- Power Supply : 12 V DC, 1.5Amps
- Operating Temperature : 0°C to 45°C
- Operating Humidity : 20% - 80%
- Dimension : 185 x 140 x 30mm
- Access Control : Relay : 12V
- Exit Readers :
- Support exit readers : Push Button
- Dual Mode : Either SSR Mode or
- Smart Office
- Smart office suite desktop
- Smart office 365 cloud
- Major Applications :
- Time & Attendance , Canteen management, School attendance, Production Management, Gym & Clubs

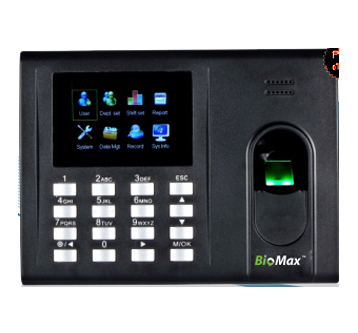

Standalone Fingerprint Time & Attendance and Access Control System
- Users : 1500 Fingerprints
- Tranascation : 30,000 Logs
- CPU : 32 bit high speed embedded processor
- Sensor : 500 dpi Optical
- Identification speed : <=2sec
- FAR: <=0.0001%
- FRR: <=1%
- Communication : RS232, RS485, TCP/IP, USB
- USB-HOST & Client 2.0 Port
- Operation temperature: 0°C – 45C
- Operation Humidity: 20-80%
- Power : 12V DC, 400mA
- LCD: 3” Color TFT
- Access Control
- Access Control Features
- Wigand reader
- Time group / Time zone
- Antipass back
- Support: Exit Reader – F12
-
Software Features
- MS Access / MS SQL Server / Oracle database
- Parallel logs download optional
- 150+ Industry standard reports
- Basic Canteen Management / Visitor
- Management / Payroll Software

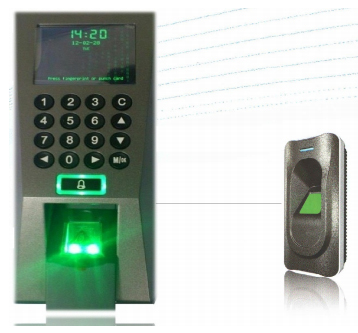

Standalone Fingerprint Time & Attendance and Access Control System
- Fingerprint Templates: 3000
- Card Capacity : 3000
- Transaction Storage : 1,00,000
- Card Reader : Inbuilt proximity card reader (optional Mifae,HID prox)
- CPU : 800 Mhz 32 bit
- Microprocessor Fingerprint Sensor : 500 DPI Optical Sensor
- FAR : <=0.0001% / FRR : <=1%
- Identication Speed : +=0.5sec
- Algorithm Ver : 10
- Display : 3” Color TFT
- Keypad : Yes
- Schedule Bell/Speaker : Mini Speaker
- Communication: TCP/IP, USB,
- (Optional : Wifi, GPRS, GPS)
- Push data : yes
- (support both static IP and domain server)
- Standard Features : Work code,SMS,DLST, Self service query, Status Switch
- Power Supply : DC l2V: 1.5Amp
- Operating Temperature : 0°C to 45°C
- Operating Humidity : 20% -80%
- Dimension : 210 x 157 x 40mm
- Access Control : Wiegand : In & Out
- both 26 or 34 bit (With or without site code)
- Relay : 12 V relay for lock EM lock,
- Bolt Lock or Strike lock
- Support Fire Alarm: Yes / Door Sensor ;
- Yes Anti Passback : Yes / Door Bell : Yes
- Support exit reader : 101 HE , FR 1200, Push Button, KR500, Notouch, KR503
- Battery : Optional / Card Readers : Yes Card Type : Mifare/HID Prox
- Compatibility :
- Compatible with Multi Door controllers via weigand
- External Speaker output available (Optional)
- External Bulb output available (Optional)
- Support External Printer
- Compatible Software & SDK :
- Smart office suite desktop and web
- Etime track lite desktop & web
- SDK for desktop applications
- Web based Device Manager/ePush server using Push data. Helps developers & integrators
- Supports 3rd Party Payroll/HRMS/ERP and Other applications
